Product ID: FSC-503-1
The FSC-503-1 Static Shielding Bag / Anti-Static Bag Making Machine is designed for producing Static Shielding Bag, Anti Static Bag which protects electronic devices from ESD and electrostatic fields.

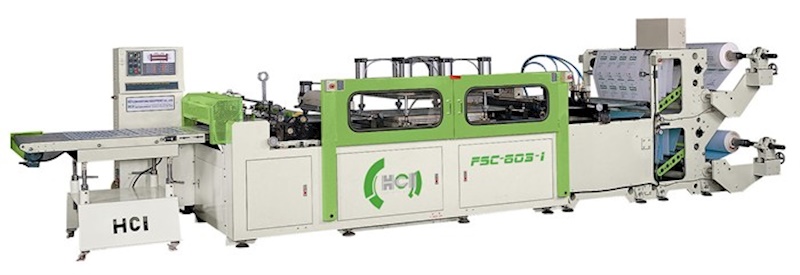

FSC-503-1, 603-1, 803-1 Static Shielding Bag Making Machine
See more complete detail
- Main drive AC motor + inverter control.
- The Static Shielding Bag length is accurately controlled by servo motor incorporated with photocell sensor for greatly upgrading the production speed.
- Horizontal unwind stand with v board provides the most convenient material loading and folding operation.
- Equipped with web guiding system (line/edge) which assured the accuracy of sealing and trimming position.
- Feeding dancer- roller assures that the most stable web feeding even under high speed operation.
- Bottom sealer auto ascending device which can prevent the material been overheated or broken when machine stop. (Patent No.42360)
- Equipped with microprocessor PID temperature controllers provide the most accurate and fastest heating performance.
- Sealing time delay control provides excellence sealing quality for thick anti static film. Superior static shielding bag performance is thus assured.
- Equipped with one set of water cooling device.
- Micro computer control system.
- Optional accessories
- Trimming device
- Pneumatic puncher
||FSC-503-1 Static Shielding Bag Making Machine
|Material Width [mm]
|Material Diameter [mm] [max.]
|Bag Length [mm]
|Bag Width [mm]
||50-400 (FEEDING LENGTH)
|Mechanical Speed [bags/min.]
