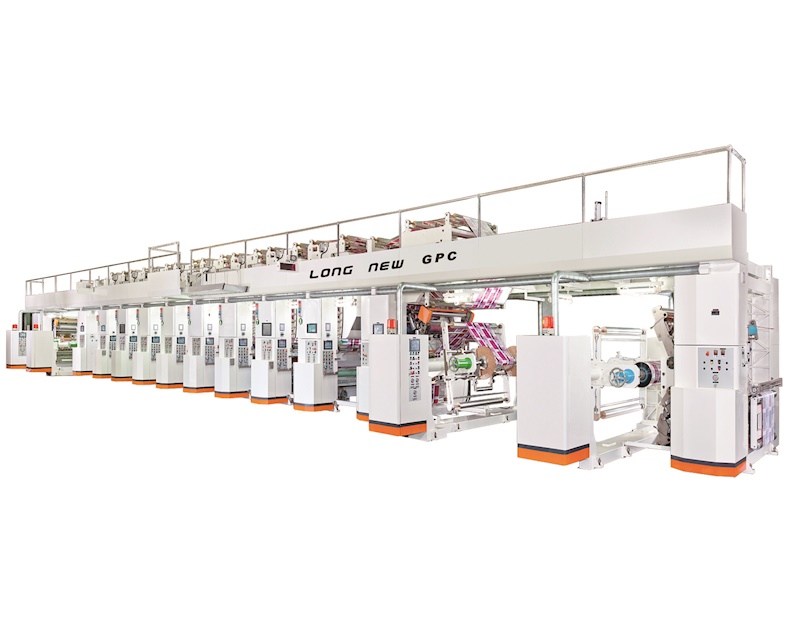

Gravure Printing Press (ELS)



  • Shaftless type unwinding and rewinding
  • Constant unwind tail length web splicer, greatly reduces wastage
  • Inverter controlled turret arm rotation
  • Ink pan tilting device allows easier ink removal after printing
  • Fully automatic splicing without manual intervention
  • Ink furnisher roller equipped to prevent ink splash and greatly enhance the printing quality of half tone colors
  • High efficiency drying system and ventilation
Model LN-GPC
Kinds of web Plastic film
Max. web width 1000 mm / 1250 mm
Max. machine speed 250 m / min
Max. cylinder width 1100 mm / 1350 mm
Available cylinder diameter 127 ~ 287 mm
Max. unwinding diameter 800 mm
Max. Rewinding diameter 800 mm
